CircleCI Deployment Guide

Overview

CircleCI builds the data-platform Docker image, pushes it to ECR, and deploys flows to the self-hosted Prefect server through the param-gated deploy-data-platform pipeline — the migrated successor to the external blog_data repo's deploy-pipeline. The whole data-platform deploy pipeline (flow-execution image, Prefect deployments, and the four blog-data-* Lambdas) now lives in this monorepo's .circleci/config.yml, pointed at data/platform. See ADR-0005.

Not on push. The pipeline runs only when the deploy-data-platform pipeline parameter is set (like deploy-video-overlay), never automatically on a branch push. A normal push skips it entirely.

Current Status Yes

  • Yes CircleCI Configuration: Configured in .circleci/config.yml, param-gated (deploy-data-platform)
  • Yes Docker Build: Multi-stage Dockerfile optimized for Python; built from data/platform/Dockerfile by monorepo CI
  • Yes ECR Push: Images tagged with the monorepo commit SHA into the blog-data repo
  • Yes Prefect Deployment: Flows deployed to self-hosted Prefect server via an internal Prefect deployer ECS task that bakes data/platform (no blog_data clone)
  • Yes IAM Permissions: CircleCI assumes OrganizationAccountAccessRole via STS using the shared aws-blog-infra-prod context
  • Yes Self-Hosted Prefect: Deployed at https://pipelines.rocketclub.online

Quick Start

For detailed setup instructions, see CircleCI Setup Guide.

Architecture

At a high level, triggering the deploy-data-platform pipeline builds the data-platform Docker image, rolls the Prefect deployer's ECS task definition forward (Terraform), then runs the deployer task — which registers the deployments from the baked-in data/platform — and finally redeploys the four Lambdas:

Trigger deploy-data-platform pipeline parameter
    ↓
┌───────────────────────────────────────────────┬─────────────────────────────┐
│ build-prefect-deployer-image ∥                 │ build-data-platform-image   │
│ build-video-overlay-image                      │ (the flow-execution image)  │
│     ↓                                          │             │               │
│ terraform-prod-plan → approval →               │             │               │
│ terraform-prod-apply (rolls the deployer       │             │               │
│ task definition)                               │             │               │
└───────────────────────┬────────────────────────┴─────────────┘               │
                        ↓  (both gate deploy-to-prefect)
deploy-to-prefect  (aws ecs run-task the prod-prefect-deployer task,
                    overriding PREFECT_IMAGE_REFERENCE = the flow image)
    ↓
Prefect deployer ECS task (defined in Terraform in this repo; bakes data/platform)
    ↓
Self-hosted Prefect API at https://pipelines.rocketclub.online
    ↓
deploy-flight-lambdas  ∥  deploy-ork-lambdas   (the four blog-data-* functions)

The deployer overrides only PREFECT_IMAGE_REFERENCE (the freshly built flow-execution image) at run-task time; that image is what the blog-data-pool ECS work pool runs for flow execution.

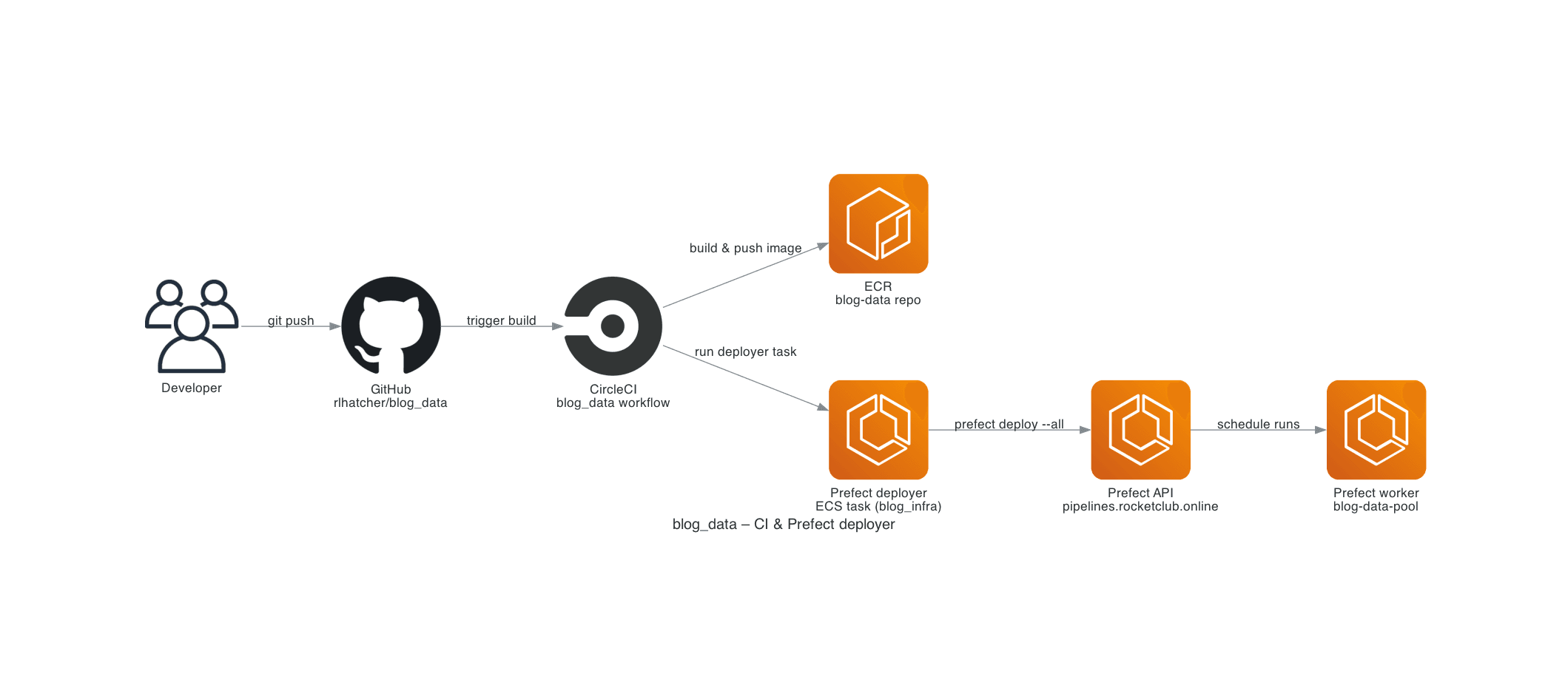

Visual overview: See the CI & Prefect deployer diagram under apps/docs/public/diagrams/diagram_2_blog_data_ci_and_deployer.png.

CI & Prefect deployer

Setup Instructions

Step 1: CircleCI Context

Ensure the aws-blog-infra-prod context exists in CircleCI and is attached to this project's workflow. That context is responsible for providing short-lived AWS credentials via STS; you should not configure static AWS_ACCESS_KEY_ID / AWS_SECRET_ACCESS_KEY values on this project.

If you want the optional Prefect smoke test in the deploy-to-prefect job to run, set PREFECT_API_URL=https://pipelines.rocketclub.online/api in that same context.

Step 2: Verify Prefect Work Pool

Ensure the blog-data-pool work pool exists:

export PREFECT_API_URL="https://pipelines.rocketclub.online/api"

prefect work-pool ls

If it doesn't exist, create it:

prefect work-pool create blog-data-pool --type ecs

Step 3: Deploy

The pipeline is param-gated — it does not run on push. Trigger it by starting a pipeline for rlhatcher/rocket-club with the deploy-data-platform parameter set to true (via the CircleCI UI's "Trigger Pipeline", or the API):

curl -X POST https://circleci.com/api/v2/project/gh/rlhatcher/rocket-club/pipeline \
  -H "Circle-Token: $CIRCLECI_TOKEN" \
  -H 'Content-Type: application/json' \
  -d '{"branch":"main","parameters":{"deploy-data-platform":true}}'

A normal branch push does not run this pipeline (the deploy-data-platform parameter is in the ci workflow's unless guard, so setting it also skips ci — no double-deploy).

Step 4: Monitor Deployment

In CircleCI

  1. Go to app.circleci.com
  2. Select your project
  3. Watch the deploy-data-platform workflow:
    • build-data-platform-image (~3-5 minutes)
    • terraform-prod-plan → approval → terraform-prod-apply
    • deploy-to-prefect (~2-3 minutes)
    • deploy-flight-lambdas / deploy-ork-lambdas

In AWS ECR

# Verify image was pushed
aws ecr describe-images --repository-name blog-data --region eu-west-2

# Get latest image
aws ecr describe-images \
  --repository-name blog-data \
  --region eu-west-2 \
  --query 'imageDetails[0]'

In Self-Hosted Prefect Server

  1. Go to https://pipelines.rocketclub.online
  2. Log in with your credentials
  3. Navigate to Deployments
  4. Verify data-pipeline-daily deployment exists
  5. Check version matches git commit hash

Configuration Files

.circleci/config.yml

The deploy-data-platform workflow (param-gated) runs, in order:

  1. build-data-platform-image

    • Uses the plain machine-executor (amd64), like build-prefect-deployer-image
    • Assumes OrganizationAccountAccessRole via STS
    • Queries ECR for the blog-data repository URL
    • Builds data/platform/Dockerfile tagged with the monorepo short SHA (skips if already pushed)
    • Pushes to ECR blog-data:<SHORT_SHA>

  2. build-prefect-deployer-image (∥ image builds) then terraform-prod-plan → approval → terraform-prod-apply

    • Rebuilds the Prefect deployer image (which bakes data/platform) and rolls the ECS task definition forward to the new deployer image tag, so the deployer registers the current baked flow code

  3. deploy-to-prefect (infra/platform/scripts/deploy-to-prefect.sh)

    • Assumes an AWS IAM role via STS; park-mode guarded (/prod/infra/park_mode)
    • Resolves cluster / task-definition / subnets / security group from /prod/prefect/deployer/* SSM parameters
    • aws ecs run-tasks the prod-prefect-deployer task, overriding container env PREFECT_IMAGE_REFERENCE=<ecr>/blog-data:<SHORT_SHA> (the flow-execution image)
    • Waits for the task to stop, tails its CloudWatch logs, and fails the job on non-zero container exit

  4. deploy-flight-lambdas ∥ deploy-ork-lambdas

    • Run data/platform/lambda/deploy-flight-lambdas.sh / deploy-ork-lambdas.sh so one trigger updates all four blog-data-* functions from the monorepo

data/platform/prefect.yaml

The canonical deployment configuration lives at data/platform/prefect.yaml. Below is a simplified excerpt for the main scheduled deployment; see the file itself for the full set of on-demand deployments and tags.

prefect-version: '>=3.0.0'
name: blog-data-pipeline

deployments:
  - name: data-pipeline-daily
    description: 'Complete data pipeline: extract → clean → load'
    schedule:
      cron: '0 2 */7 * *'
      timezone: 'America/New_York'
    entrypoint: flows/main_pipeline.py:data_pipeline_flow
    work_pool:
      name: blog-data-pool
      work_queue_name: default
      job_variables:
        image: '{{ $PREFECT_IMAGE_REFERENCE }}'

Note: Docker build/push steps are handled by CircleCI, not Prefect.

Dockerfile

Multi-stage build:

  • Stage 1 (builder): Install dependencies
  • Stage 2 (runtime): Copy artifacts, minimal runtime image

Key Decisions & Lessons Learned

1. ECR Tag Immutability

Issue: ECR repository has immutable tags enabled, so we can't overwrite latest tag.

Solution: Only push commit hash tags ($CIRCLE_SHA1), not latest.

2. Work Pool Type

Issue: Initially configured for ECS work pool with Docker build/push steps.

Solution: Use Prefect managed work pool (blog-data-pool) and handle Docker build/push in CircleCI.

3. IAM Permissions

Issue: ECR resource ARN pattern blog-data-* didn't match repository blog-data.

Solution: Added both exact repository name and wildcard pattern to IAM policy:

resources = [
  "arn:aws:ecr:${var.aws_region}:${data.aws_caller_identity.current.account_id}:repository/${var.project_name}",
  "arn:aws:ecr:${var.aws_region}:${data.aws_caller_identity.current.account_id}:repository/${var.project_name}-*"
]

4. Prefect Deploy Options

Issue: prefect deploy --all --no-prompt failed because --no-prompt doesn't exist.

Solution: Use prefect deploy --all without the --no-prompt flag.

Troubleshooting

"AWS credentials not found"

  1. Verify environment variables in CircleCI:
    • AWS_ACCESS_KEY_ID
    • AWS_SECRET_ACCESS_KEY
    • AWS_REGION
  2. Check variable names match exactly (case-sensitive)

"Failed to push image to ECR"

# Check ECR repository exists
aws ecr describe-repositories --repository-names blog-data --region eu-west-2

# Verify credentials have ECR permissions
aws ecr get-authorization-token --region eu-west-2

"Prefect connection failed"

  1. Verify PREFECT_API_URL is correct (should end with /api) if you are running Prefect CLI locally or from CI
  2. Check that your machine or runner can reach https://pipelines.rocketclub.online/api
  3. Confirm the Prefect API ECS service is healthy in AWS

"Work pool 'blog-data-pool' not found"

# Create the work pool
prefect work-pool create blog-data-pool --type ecs

"tag invalid: The image tag already exists"

This happens when trying to push latest tag to ECR with immutable tags enabled.

Solution: Only push commit hash tags, not latest.

Manual Deployment (if needed)

If CircleCI fails, deploy manually:

# Build and push image
AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query Account --output text)
ECR_REPO_URL="${AWS_ACCOUNT_ID}.dkr.ecr.eu-west-2.amazonaws.com/blog-data"

aws ecr get-login-password --region eu-west-2 | \
  docker login --username AWS --password-stdin ${AWS_ACCOUNT_ID}.dkr.ecr.eu-west-2.amazonaws.com

docker build -t blog-data:$(git rev-parse HEAD) .
docker tag blog-data:$(git rev-parse HEAD) ${ECR_REPO_URL}:$(git rev-parse HEAD)
docker push ${ECR_REPO_URL}:$(git rev-parse HEAD)

# Deploy flows against self-hosted Prefect (from within the VPC or an admin machine)
export PREFECT_API_URL="https://pipelines.rocketclub.online/api"
prefect deploy --all

Monitoring

View CircleCI Logs

  • UI: app.circleci.com → Project → Workflow
  • CLI: circleci workflow view <workflow-id>

View Prefect Deployments

# List all deployments
prefect deployment ls

# View specific deployment
prefect deployment inspect data-pipeline-daily

View ECR Images

# List images
aws ecr describe-images --repository-name blog-data --region eu-west-2

# Get image details
aws ecr describe-images \
  --repository-name blog-data \
  --region eu-west-2 \
  --image-ids imageTag=<commit-hash>

Next Steps

  1. Yes Environment variables configured in CircleCI
  2. Yes Pipeline tested and working
  3. Yes Docker images in ECR
  4. Yes Flows deployed to self-hosted Prefect
  5. ⏭️ Test flow execution from Prefect UI
  6. ⏭️ Monitor scheduled runs (see data/platform/prefect.yaml for the canonical cron schedule)
